IMPORTANT:
- NEW PART NUMBER your old part number is no longer available, new part number fits old and new serials.
- The product could be a different color or shape, (internal item, color does not interfere with operation)
- If you don't fix the original problem, the new item will be broken again. TERMINAL CONNECTORS or bad electric contact need fix it, cleaning and close terminal to better power contact.
TECHNICAL NOTE

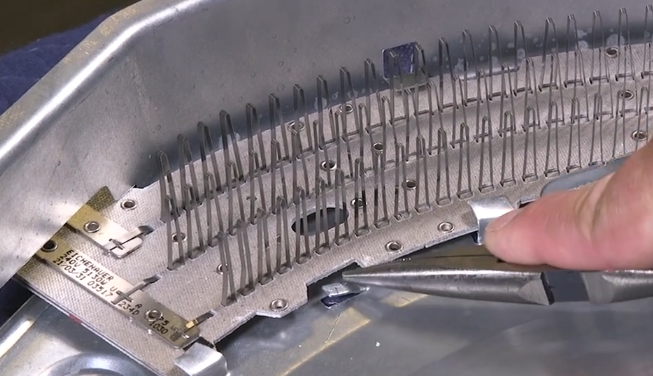

- IMPORTANT In the installation or transport the coil could be bent, put straight
the coil before to put the screws
- When you finish the repair it, we recommend that you take a peek behind the dryer before fully pushing it back. It is a common mistake to push back the dryer too far which crushes the dryer vent. If you crush the vent, it will restrict air flow, and will reduce performance of the dryer — and may lead to a lint clog blocking the vent.
- Disconnect the power source to your dryer before you conduct this or any other repair. Either unplug the unit from the wall outlet, remove the appropriate fuse from the fuse box, or flip the appropriate breaker in the circuit breaker panel.
- Disconnect the power source to your dryer before you conduct this or any other repair. Either unplug the unit from the wall outlet, remove the appropriate fuse from the fuse box, or flip the appropriate breaker in the circuit breaker panel.
See video installation CLICK HERE
copy right of RepairClinic.com only for educational propose, if you are not a certified technician do not use this information
DIFFERENT CONNECTORS OR SIZE FOR MODEL AND SERIAL NUMBER:
SERIAL 45 fits old part numbers WE11M10001 (AP5793359) replaces WE11M32, 3029257, PS8756702.
SERIAL 45Fits old part numbers WE11X21156 (AP6004295) replaces 4546245, PS11736636.
