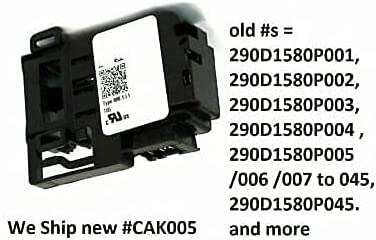

Installation Manual Door Switch Black/Negro 290D1580P002 WH01X27954 WH01X27954 233D2274P002 233D2274P001 WW01L01660 AP6331854, WH01X26114, WH01X24114

IMPORTANT: Your old part number is no longer available, we ship new part #, perfect fit old and new serials, If you need help send picture of the old part #

ONLY FOR CERTIFIED TECHNICIANS

DISCLAIMER: NO RETURNS ALLOWED IF THE BAG OR BOX IS OPENED (Watermark in each item)

Buyer pays return shipping ($4.95 to $12.00 1st Class), 8-10 days return time Approx.

We need tracking confirmation before to return

SOLUTIONS ERROR CODE 80%

80% LID LOCK SWITCH
5% Fuse or lid or door lock switch or both
5% Bad Electric Contacts and terminals - for vibrations, It is common for old models
5% water pump and hose obstructions or Dryer Ducts obstructions
5% Main or Secondary Board or front board

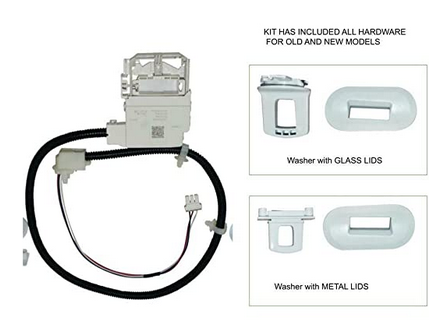

If you change the product and get the same ERROR you need SWITCH + HARNESS PART NUMBER CK14026

           Old version                                                                                                           NEW version CK14026 Solution                                                                                                                                             Error code and intermittent torn off

IMPORTANT: Your old part number is no longer available,

 we ship new part #, perfect fit old and new serials, If you need help send picture of the old part #

TEST 1

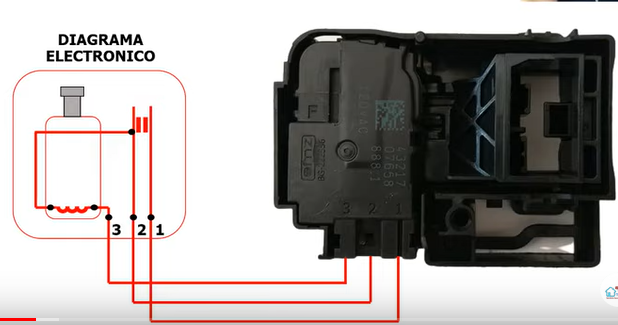

2 to 1 = Switch , Normal Open, Close when the lid close (continuity)

3 to 2 = from 50 to 90 ohms +/- 10% -  LOCK COIL (depends the serial)

TEST 2

110 volt in 3 and 2 for 2 seconds, The lock is working-Turn on

110 volt in  3 and 2 for 2 seconds, The lock is Open-Turn off

See video to help- IMPORTANT no direct volts - Close the switch for testing

Model Cross Reference
