Installation Manual Water Tank Dispenser PNUS-5001- WR17X2132= R0131625

IMPORTANT: Your old part number is no longer available, we ship new part #, perfect fit old and new serials, If you need help send picture of the old part #

ONLY FOR CERTIFIED TECHNICIANS

DISCLAIMER: NO RETURNS ALLOWED IF THE BAG OR BOX IS OPENED (Watermark in each item)Buyer pays return shipping ($4.95 to $12.00 1st Class), 8-10 days refund time Approx.

Every item will be inspection in factory lab after returned.

1-New Manufacturer design Perfect fit Genuine LG, Samsung, Whirlpool, Maytag, Kenmore, Frigidaire, Gibson, Kelvinator, Westinghouse, Whirlpool and many more.

2-You can see that the part looks different but fits perfect with your old model.

 This is a ‘NEW MANUFACTURER DESIGN’...

Some models need Double Face Tape to holding the water tank in place

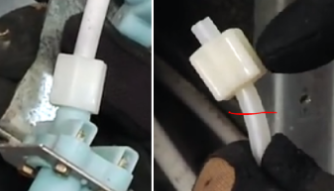

NO NUT REQUIRED - CUT the hose and use the quick connect - PUSH hard to the end

1. Turn-off water

2. Removed drawers and bottom three shelves

3. Remove screw inside refrigerator that is holding the water tank in place

4. Remove bottom front grate on fridge (2 screws) and disconnect water line from quick disconnect (residual water will run out of line)

5. Remove bottom cover on back of fridge

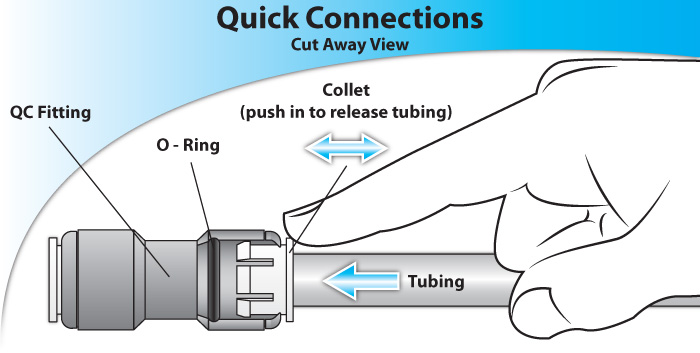

6-Use the quick connect to put the new tank hose, PUSH HARD  the quick connect

FIT plastic or copper tube, Just cut the old water hose or copper tubing
