ONLY FOR CERTIFIED TECHNICIANS DISCLAIMER: NO RETURNS ALLOWED IF THE BAG OR BOX IS OPENED (Watermark in each item), Buyer pays return shipping ($4.95 to $12.00 1st Class), 8-10 days return time Approx.
We need tracking confirmation before to return
IMPORTANT: Your old part number is no longer available, we ship new part, perfect fit old and new serials, If you need help send picture of the old part

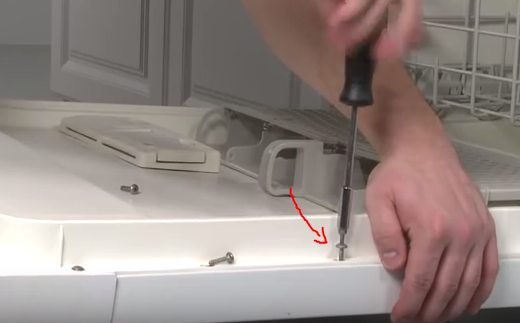

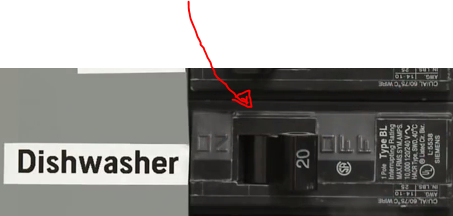

You need to switch off power to the dishwasher or disconnect, unplug unscrewed the front panel from the inside sides

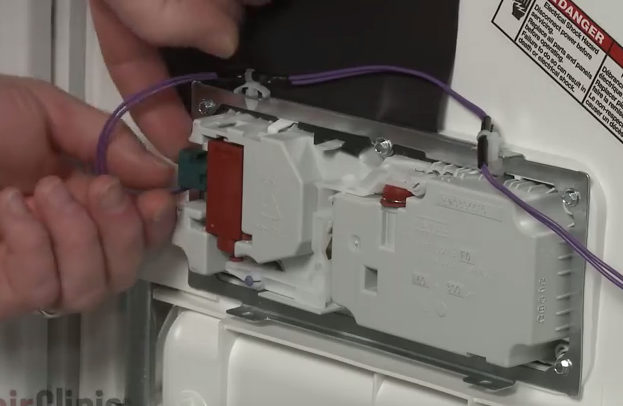

carefully removed the front by lifting up and off. Then disconnected the signal wire by unclipping it from the detergent dispenser; it clipped in like a phone jack.

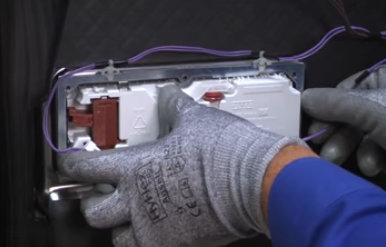

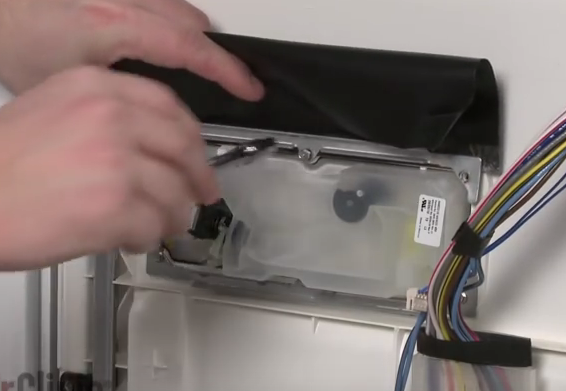

Unscrewed the frame holding in the dispenser, then popped out the old dispenser, popped in the new one
hooked the signal back in. Replaced the front, screwed it in, turned on power and ran a small quick wash to make sure

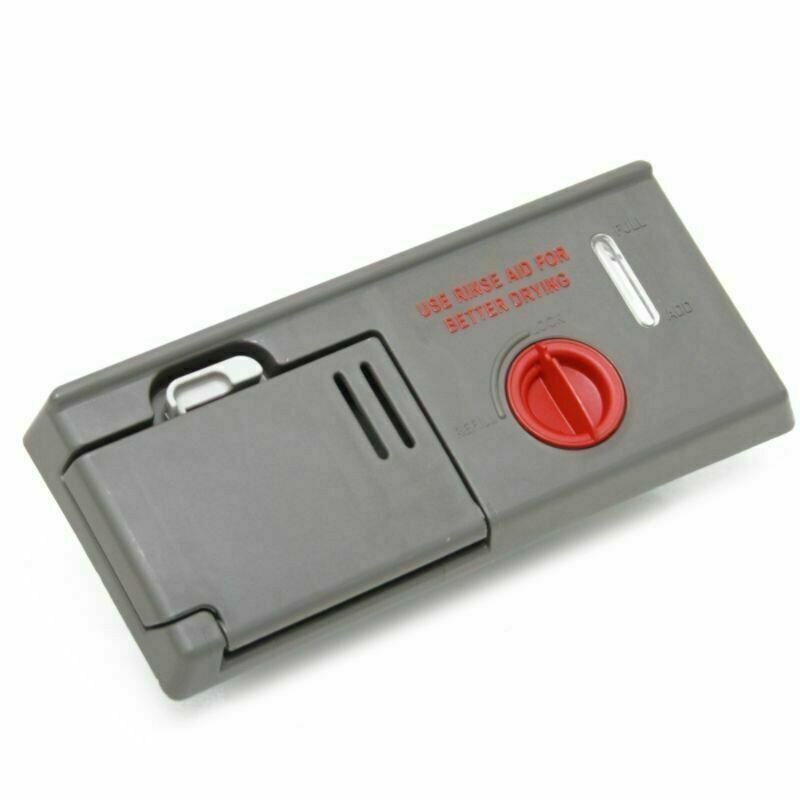

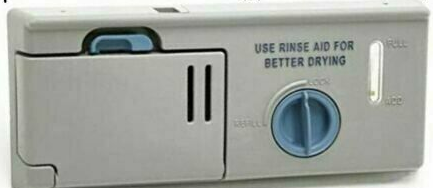

The color of the new part could be different, compare wire connector before to order
