Dryer timer
New part number , old part number no longer available, Dryer timer Old number (TMD1EM35, 234D2377P005) WE04X25280, 4467035, PS11763067, AP6032628, W02F00657, TMD1EM35, 234D2377P005Y86E1006 HONEYWELL
The item could be update , different color or additional terminals (just use then terminals in your timer)

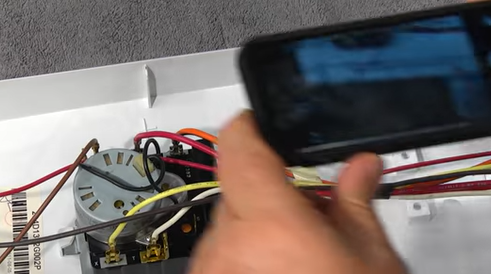

Before to replace take picture of the wire colors and connectors
WIRING CABLES CHANGE TERMINAL BY TERMINAL
VIDEO SAMPLE - How remove the timer (Different part number, no compare wire connectors)
https://www.youtube.com/watch?v=JqNJR_Sj0DU
