ONLY FOR CERTIFIED TECHNICIANS DISCLAIMER: NO RETURNS ALLOWED IF THE BAG OR BOX IS OPENED (Watermark in each item)
Buyer pays return shipping ($4.95 to $12.00 1st Class), 8-10 days refund time Approx.
Every item will be tested in factory lab. We need tracking confirmation before to return
IMPORTANT: Your old part number is no longer available, we ship new part #, perfect fit old and new serials, If you need help send picture of the old part #
SOLUTIONS ERROR CODE 80%
80% LID LOCK SWITCH
5% Fuse or lid or door lock switch or both
5% Bad Electric Contacts and terminals - for vibrations, It is common for old models
5% water pump and hose obstructions or Dryer Ducts obstructions
5% Main or Secondary Board or front board
If you change the product and get the same ERROR you need

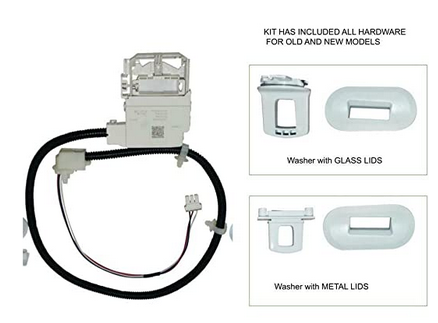

SWITCH + HARNESS PART NUMBER CK14026
Old version NEW version CK14026 -Solution Error code and intermittent torn off
PART NUMBER CK14026

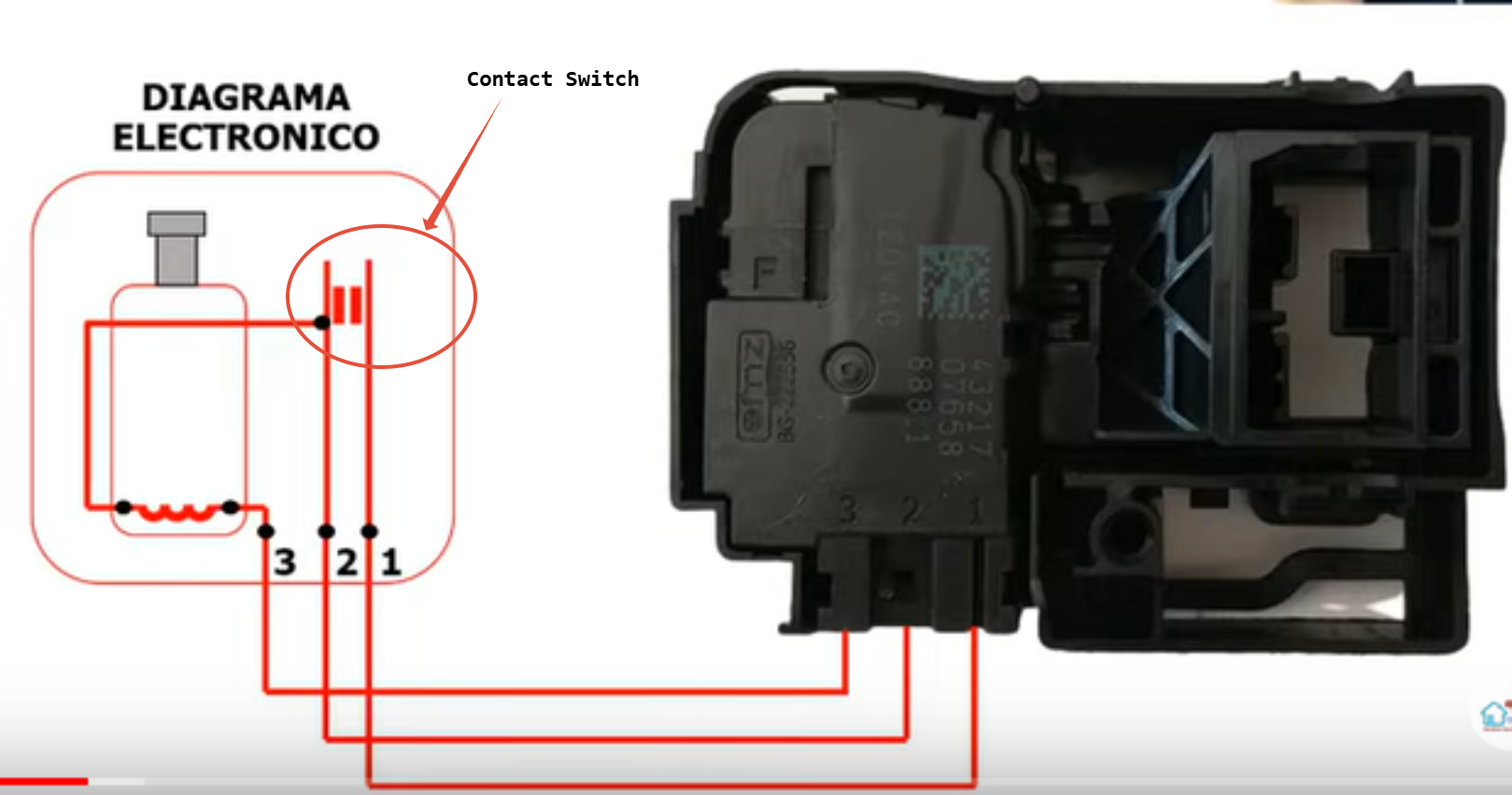

TEST 1
2 to 1 = Switch , Normal Open, Close when the lid close (continuity)
3 to 2 = from 50 to 90 ohms +/- 10% - LOCK COIL (depends the serial)
TEST 2
110 volt in 3 and 2 for 2 seconds, The lock is working-Turn on
110 volt in 3 and 2 for 2 seconds, The lock is Open-Turn off
See video to help- IMPORTANT no direct volts- Close the switch for testing
www.appliance-repair-manuals.org
see pictures, manuals and videos
