ONLY FOR CERTIFIED TECHNICIANS DISCLAIMER: NO RETURNS ALLOWED IF THE BAG OR BOX IS OPENED (Watermark in each item)
Buyer pays return shipping ($4.95 to $12.00 1st Class), 8-10 days refund time Approx.
Every item will be tested in factory lab.
IMPORTANT: if you find any obstruction, Immediately REPLACEMENT water PUMP MOTOR
or your main board or motor will be broken overheat

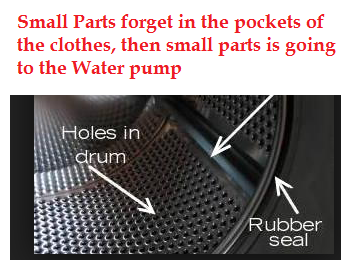

If your washer pump has any obstructions: coins, small clips, small clothes, your old water pump motor can work but the coil overheats, you need to change the motor immediately. Avoid further damage in main boards or main motor for extra electrical charge

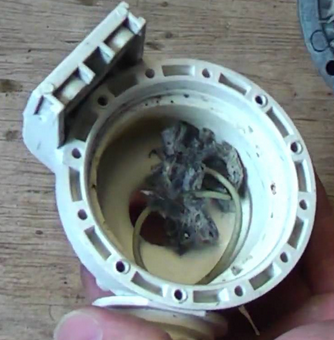

If you have a problem with your washer pump or impeller broken, You need to double check the housing and hose in your washer machine, several times we found foreign objects like coins, clips, and other small stuff inside of the water pump and hoses.
OPTIONAL FOR SERIAL CKD598 You can turn the motor if you have old serial
Different assembly

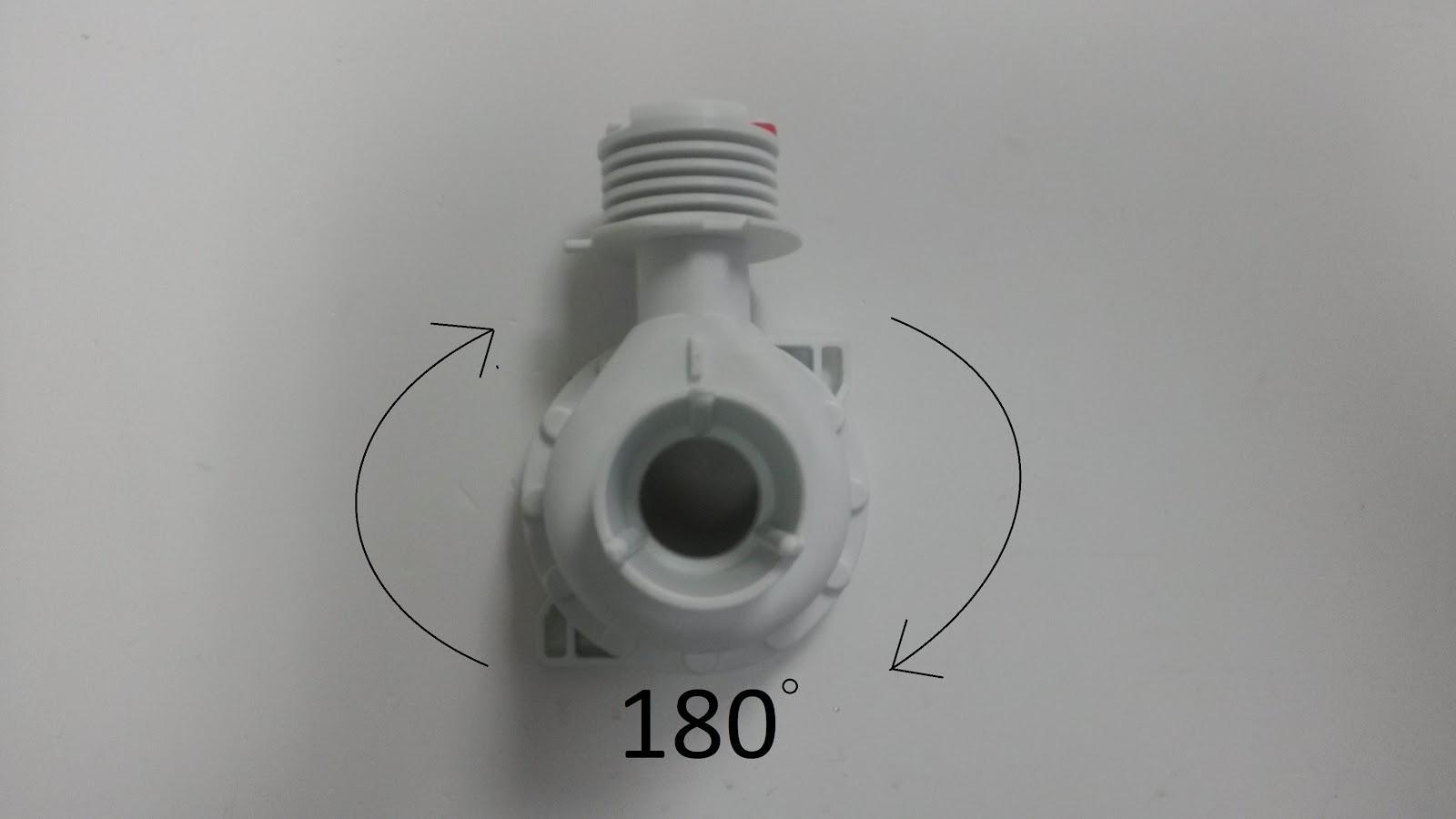

Just turn the case 180 grades

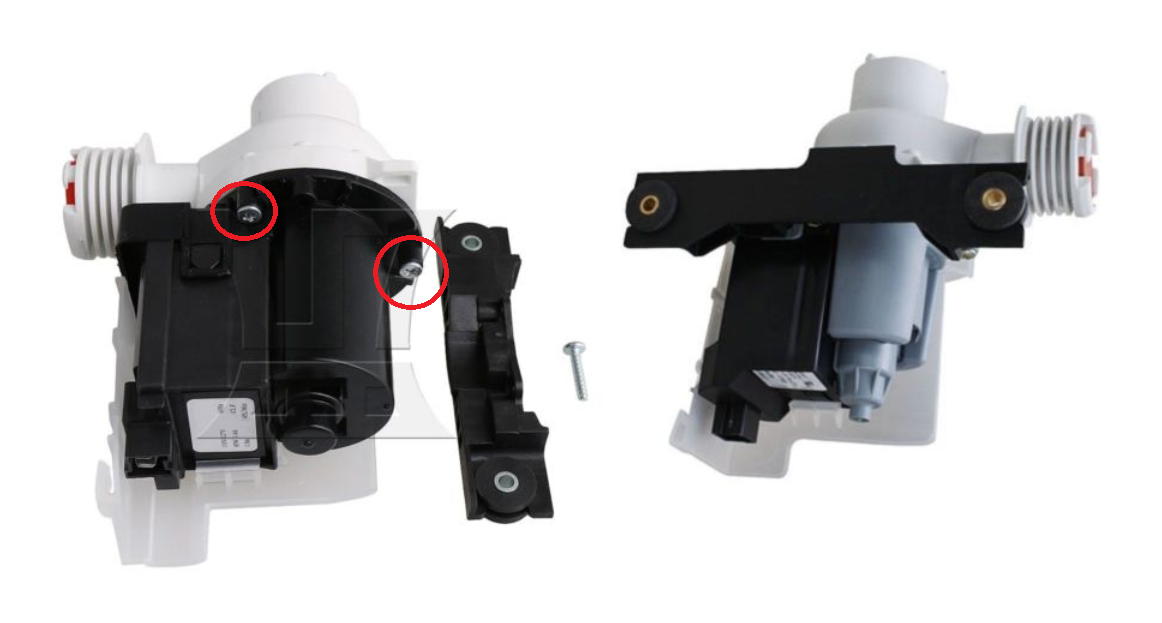

For old models and all serial numbers change the position of the pump body. You only have to take the (3) screws out and rotate 180 degrees or until it is convenient and screw it back on once the desired position has been reached
www.appliance-repair-manuals.org
see pictures, manuals and videos - DOC45690
TEXTING PICTURE WE CAN HELP - ADD ORDER NUMBER AND:
1-ORIGINAL PROBLEM 2-PROBLEM AFTER CHANGE THE NEW ITEM
