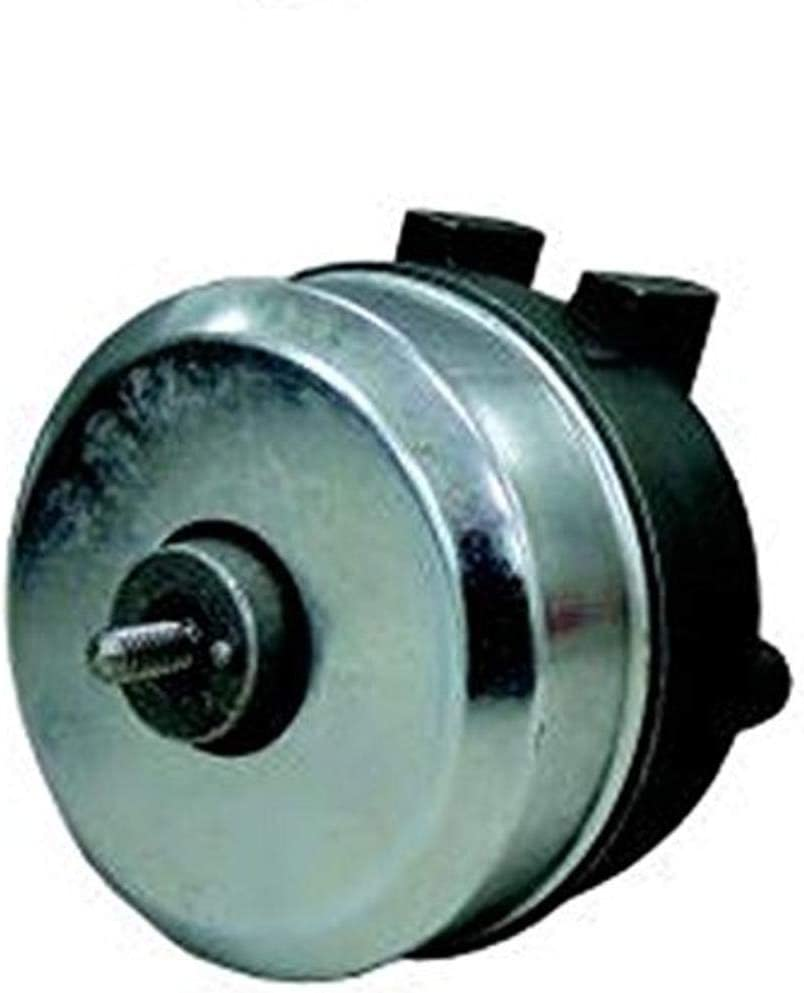

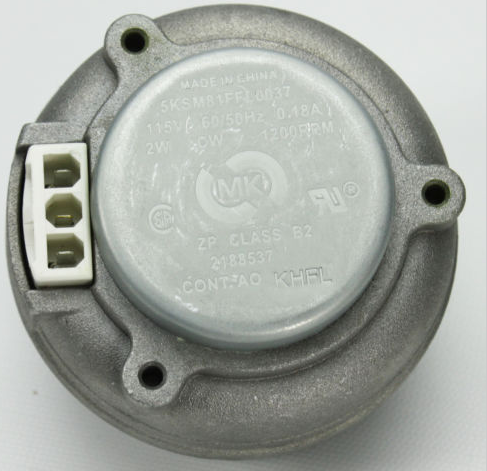

Motor 2 watts CW ANSM5113X

ONLY FOR CERTIFIED TECHNICIANS      DISCLAIMER: NO RETURNS ALLOWED IF THE BAG OR BOX IS OPENED (Watermark in each item)

Buyer pays return shipping ($4.95 to $12.00 1st Class), 8-10 days refund time Approx.

Every item will be tested in factory lab.

IMPORTANT: Your old part number is no longer available, we ship new part #, perfect fit old and new serials, If you need help send picture of the old part #

  = =

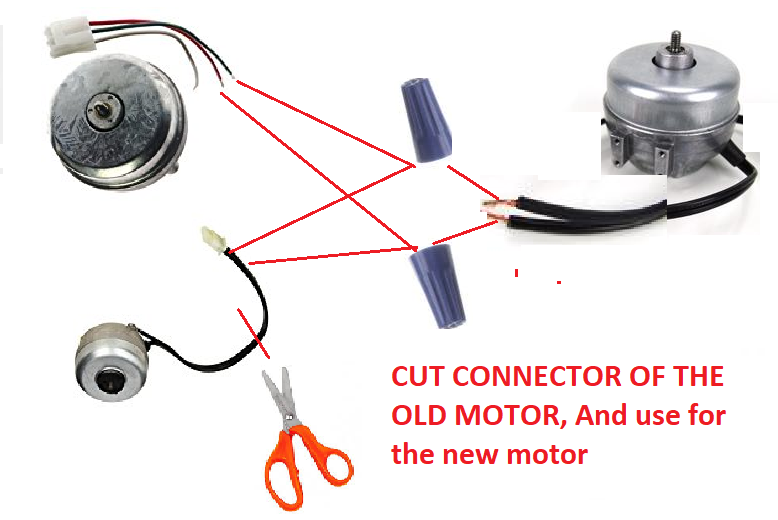

IMPORTANT: Your old wire connector can be different, You can use the old one wire connector for the new motor

The new has included all parts

That you need to fix your old model

New part could be different color and connectors

To replace the motor, follow its two wires back to the terminal block and remove them using a pair of needle-nose pliers (Fig. 1). Next, use either a nut driver or screwdriver to remove the mounting screws that hold the fan assembly and bracket onto the metal divider in the motor compartment (above).Carefully remove the assembly from the motor compartment. Next, remove the fan blade from the motor by backing off the thin rectangular nut that secures the fan to the motor (Fig. 2).Next, take the fan blade and rubber washer off the motor shaft. Remove the mounting bracket from the old fan motor and install it on the new motor (Fig. 3). Then install the rubber washer and the fan blade on the new motor. Tighten the nut, reinstall the fan assembly and attach the motor wires to the terminal block. Check that there are no wires in the way of the blade or motor and that the fan spins freely. Install the rear access cover, then plug the refrigerator back in and test run it. A new condenser fan motor can be obtained from the refrigerator manufacturer or a local appliance parts distributor. When ordering the new motor, supply the company with the make and model number of your refrigerator.
